Getting Started With a Private LoRaWAN Network Using ChirpStack v4 (Updated)

I have recently started experimenting with LoRa radios, and the LoRaWAN network protocol. Interestingly it seems that the LoRa ecosystem is simultaneously surprisingly open (both in specifications and implementations), while also having very little definitive documentation on how to actually get started as an indvidual hacker. As such I found the process of learning enough of the protocol to set up my own network surprisingly difficult.

This post will walk through the process of setting up my own private LoRaWAN network, from low cost hardware all the way up to the application level. While I would never claim to be an expert in LoRa or LoRaWAN, I hope someone finds this a useful reference.

Note:

This is an updated republication of my original 2022 Getting Started With a Private LoRaWAN Network post. Shortly after my last post I had to put the project on hold for a long time, and when I finally got back to it, I found ChirpStack had released a new architecturally incompatible version 4 of their LoRaWAN network framework. Since the configuration files and setup process have changed so significantly, the process described in my old post is no longer valid. I have rewritten the ChirpStack configuration section of this post to be compatible with the new ChirpStack v4.

LoRa and LoRaWAN Basics

LoRa (not to be confused with LoRaWAN) is a proprietary modulation and physical layer standard for low power wireless communication, originally developed in 2010 by Cycleo, which was later acquired by Semtech in 2012. The LoRa physical layer uses a “Chirp Spread Spectrum” (CSS) modulation technique to spread the signal over either 125, 250, or 500MHz bands. The use of CSS modulation, instead of the more common “Direct Sequence Spread Spectrum” (DSSS) allows LoRa to transmit over longer ranges and be more robust to many common types of interference.

The advertised range for LoRa transceivers tend to be in the 1km to 10km range, though from my research it realistically is more often on the lower end of that range. I have not tested what range I can get from my system yet, so I don’t have my own empirical data. More information about LoRa modulation and the physical layer can be found in this Application Note from Semtech, and this excellent series of blog posts.

LoRaWAN, on the other hand, is a “Low Power Wide Area Network” (LPWAN) specification, built on top of the LoRa physical layer. LoRaWAN defines a network architecture, MAC layer, and link layer protocols, primarily targeted at building low power and bandwidth sensor networks. The LoRaWAN standard is defined by the LoRa Alliance, and is published as an open standard in two primary parts: The LoRaWAN L2 Specification which defines everything except specific physical layer parameters, and the LoRaWAN Regional Parameters which defines physical layer parameters, such as frequency bands, bandwidth, etc. for specific regions of the world, in order to be compliant with local regulations.

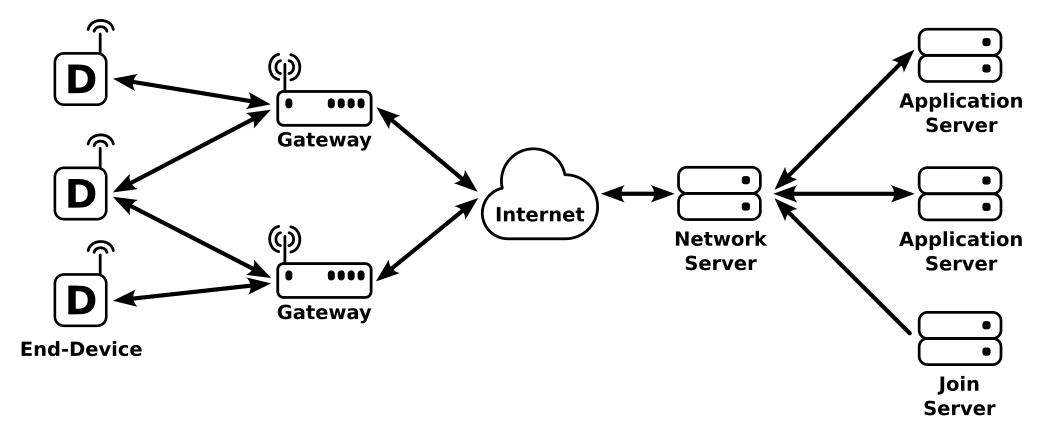

The basic architecture of a LoRaWAN network is shown above. Each LoRaWAN “End-Device” communicates with one or more “Gateway” devices over the LoRa physical layer. These gateways forward messages between the end-devices and a “Network Server” over standard TCP/IP networking. The network server manages all devices connected to one or more gateways, including device activation (joining a network), congestion control, etc. Device authentication is handled by a separate “Join Server” that interfaces with one or more network servers, and finally any non-management messages from a device are sent from the network server to an application server.

Getting Started

The simplest way to start using LoRaWAN, is to buy some LoRaWAN devices, connect them to a public network such as The Things Network, and you are good to go. While this is simple because all the network and server management is handled by someone else, I wanted to set up my own network. This was partially just to understand how all the pieces of the LoRaWAN network work, but also because I don’t have coverage from any of these networks where I live anyway.

To set up your own network you need essentially four things:

• End device hardware, generally a LoRa transceiver and a microcontroller.
• Firmware network stack to run on the end device.
• Gateway radio for the end devices to connect to.
• Gateway client and network/join server software.

End-Devices

Hardware

For end-device hardware, there are many different options, from off the shelf LoRaWAN connected sensors and devices, to bare LoRa transceiver chips. For my first foray into LoRaWAN I chose to use an integrated LoRa radio/microcontroller module, since I believe it provides the most direct development path to building my own custom device PCBs in the future, while also allowing complete programmability of the device. There are several manufactures that produce these modules with different specifications, but I chose the CMWX1ZZABZ module from muRata as it was a fairly common, low cost option.

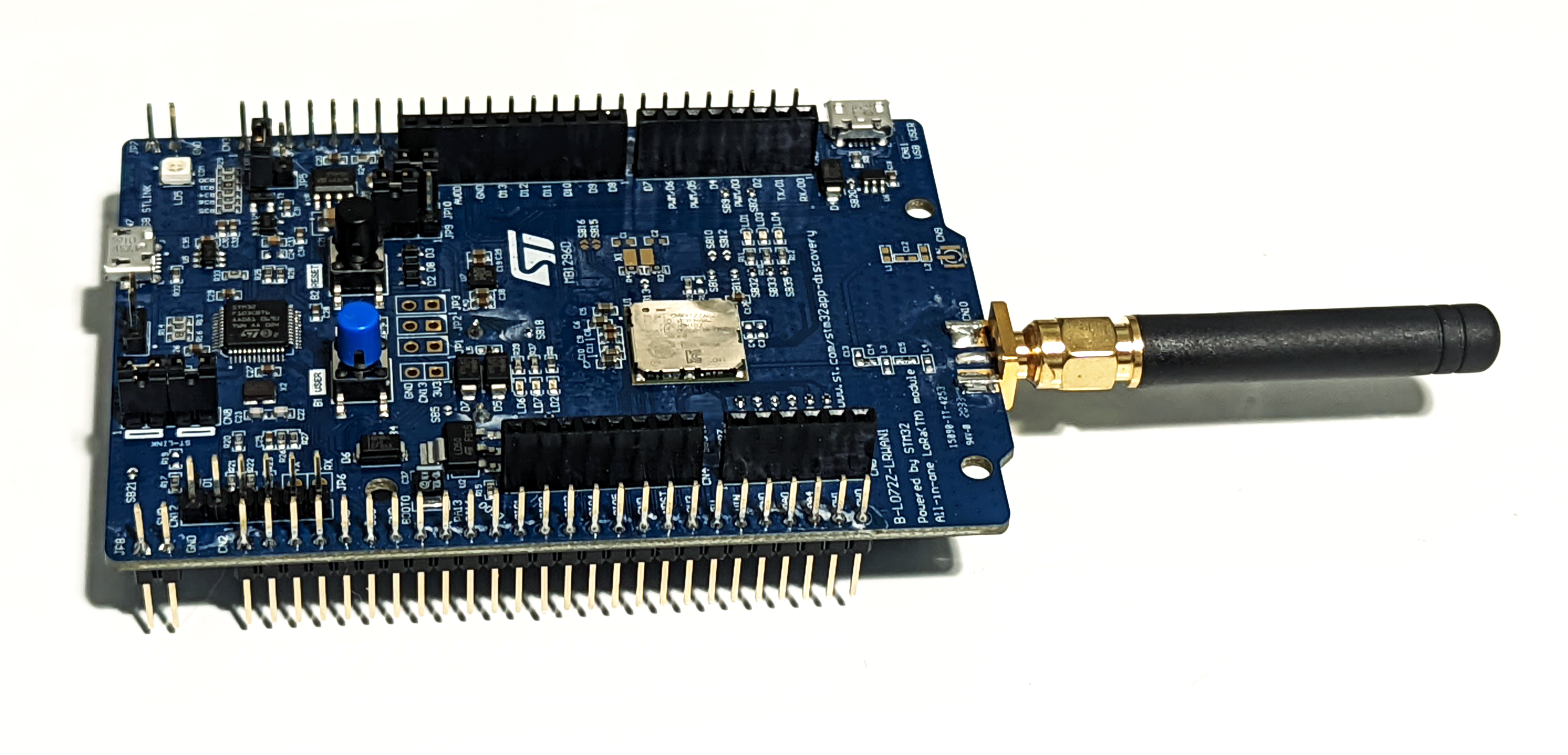

The CMWX1ZZABZ module integrates a Semtech SX1276 LoRa transceiver, RF switch, and STM32L microcontroller into single surface mount RF module that is easily integrated onto a custom PCB. The integration of a STM32 MCU is convenient, as this is a microcontroller platform that I am already familiar with. Additionally, ST Microelectronics even sells the B-L072Z-LRWAN1 development board that included everything I needed to get started building a LoRaWAN end-device.

Firmware Networking Stack

In addition to the end-device hardware, I also needed firmware that implemented the end-device side of the LoRaWAN protocol. Fortunately, Semtech have published a BSD licensed LoRaWAN end-device networking stack that works with many of their LoRa transceiver chips. Even better, STMicroelectronics, provide a packaged version of this library that is already integrated with their STM32Cube embedded software stack. This makes it very simple to get some demo applications running on the B-L072Z-LRWAN1 development board with very little effort.

One of the demo applications provided as part of the STM32Cube LoRaWAN expansion makes the module behave as a fully featured LoRaWAN modem that accepts AT style commands over a UART port. This AT modem application firmware is what I ended up using to test and debug, as it gave me interactive control over my end-device with known working firmware, so I didn’t need to debug my own firmware at the same time as my network configuration.

Gateway

Hardware

Unlike the end-devices, the hardware for a Gateway turns out to be a bit more complicated. Primarily this is because while the end-device only needs to transmit or receive on one channel at a time, gateways generally must be able to receive packets from multiple end-devices on multiple channels simultaneously¹. Additionally, not only must the gateway be able to receive packets on typically several channels at once, in order to support the class B beacon protocol the gateway must use GPS to get precise time and location information, and also has to have a full TCP/IP networking stack to communicate with the network server.

Now, there are full off the shelf LoRaWAN gateways for sale, but most don’t even publish a price, and as the adage goes “if you have to ask the price you can’t afford it”. Even the few gateway devices that you can easily purchase are usually north of $400, which was a little out of my budget. After some research, it turns out that most LoRaWAN gateways are built off the same Semtech SX130x (baseband)/SX125x (front-end) chipset, connected to something like a fairly beefy ARM processor running Linux. The general structure of one of these gateways is shown in the block diagram below, from the Semtech LoRaWAN gateway “Corecell” reference design.

Since I was trying to avoid spending hundreds of dollars if I could, I did briefly consider building my own gateway PCB based on this architecture. However due to 2022 “Chipageddon”, I couldn’t actually get my hands on bare SX1308 chips. In the end I found that the Pycom makes an expansion board for their Wipy microcontroller modules that turns them into a LoRaWAN gateway. Now, I wasn’t interested in actually using a Wipy or their associated software, but the “Pygate” expansion module is essentially a copy of the Semtech reference design above that I could pick one up for $52 from Mouser.

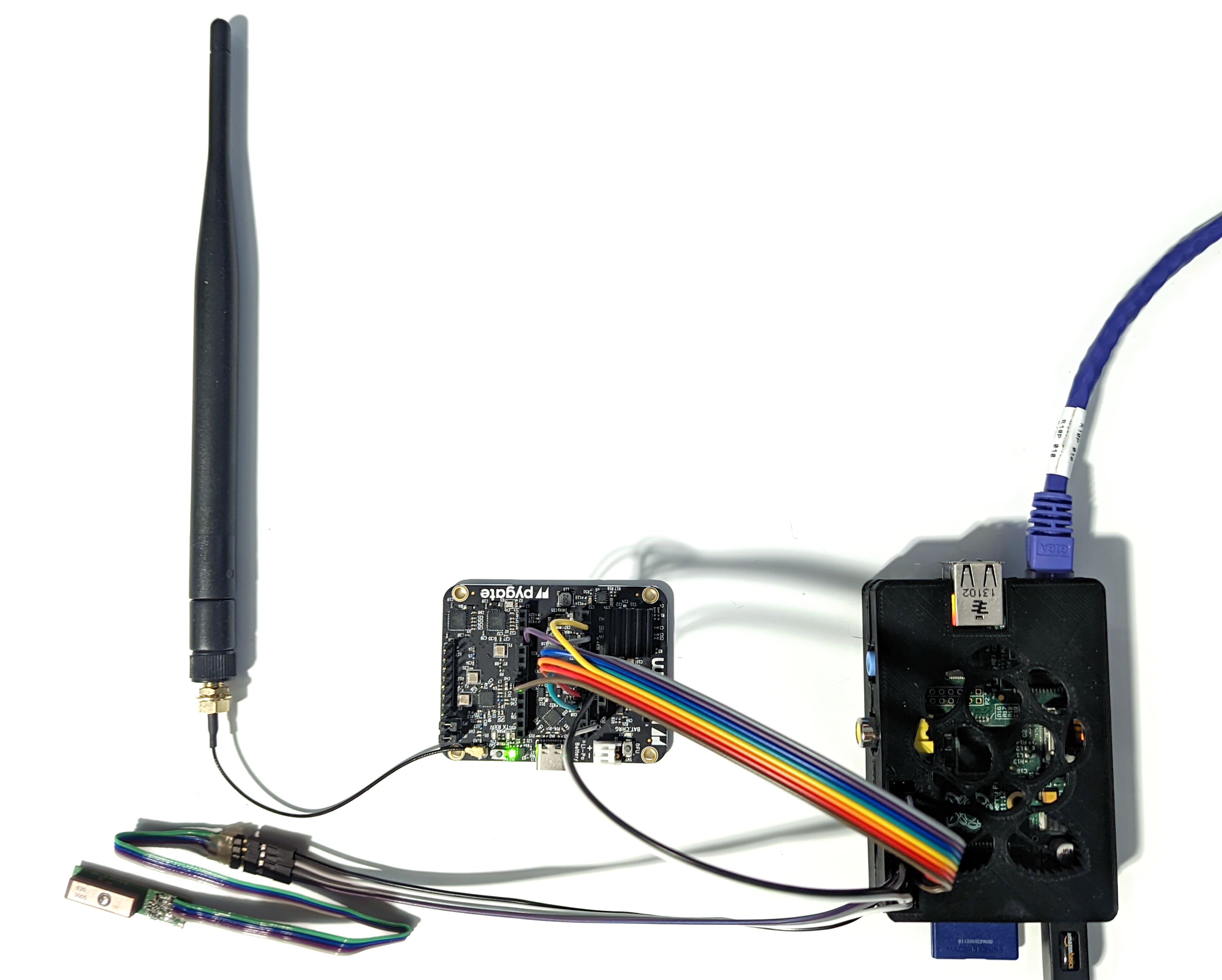

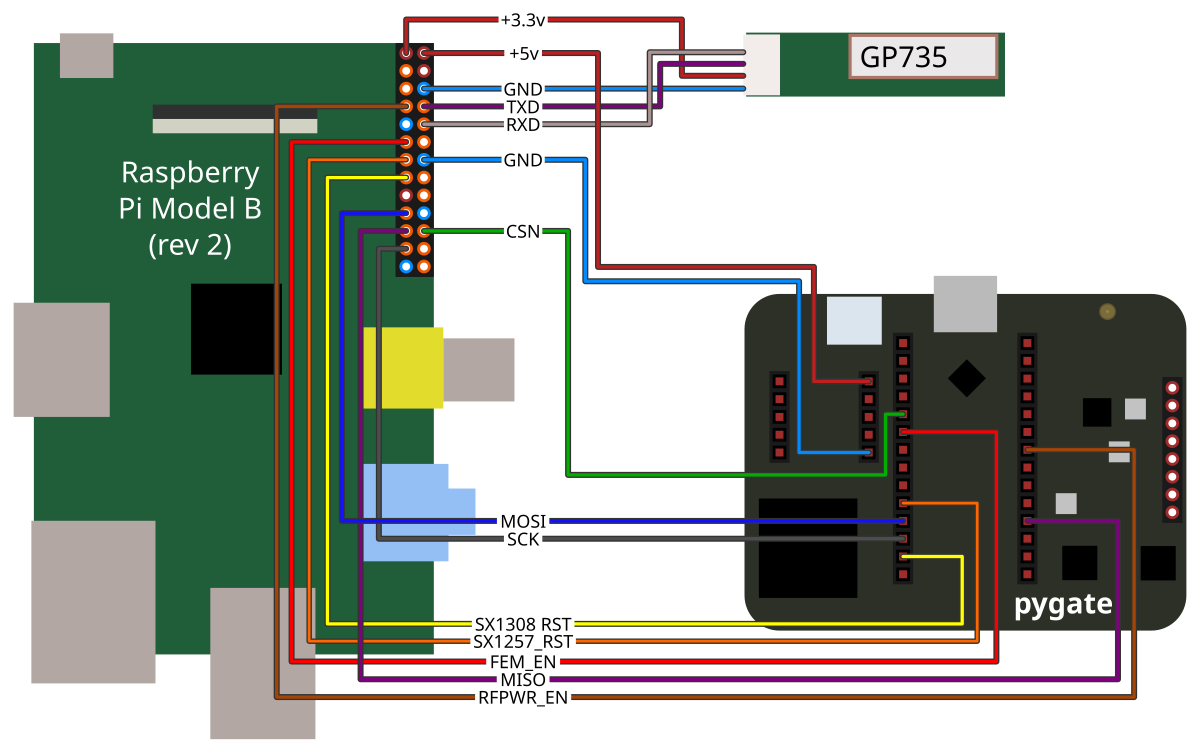

To make a full gateway device, I connected the Pygate module to an old Raspberry Pi (Model B rev. 2) and a GP-736 GPS module that I had laying around. The GPS module unfortunately does not have a 1pps output that can be used for very precise timing. But even it’s limitations this it is sufficient to build an equivalent system to the Corecell reference design, and more importantly, works with the Basic Station software from Semtech.

Gateway Software

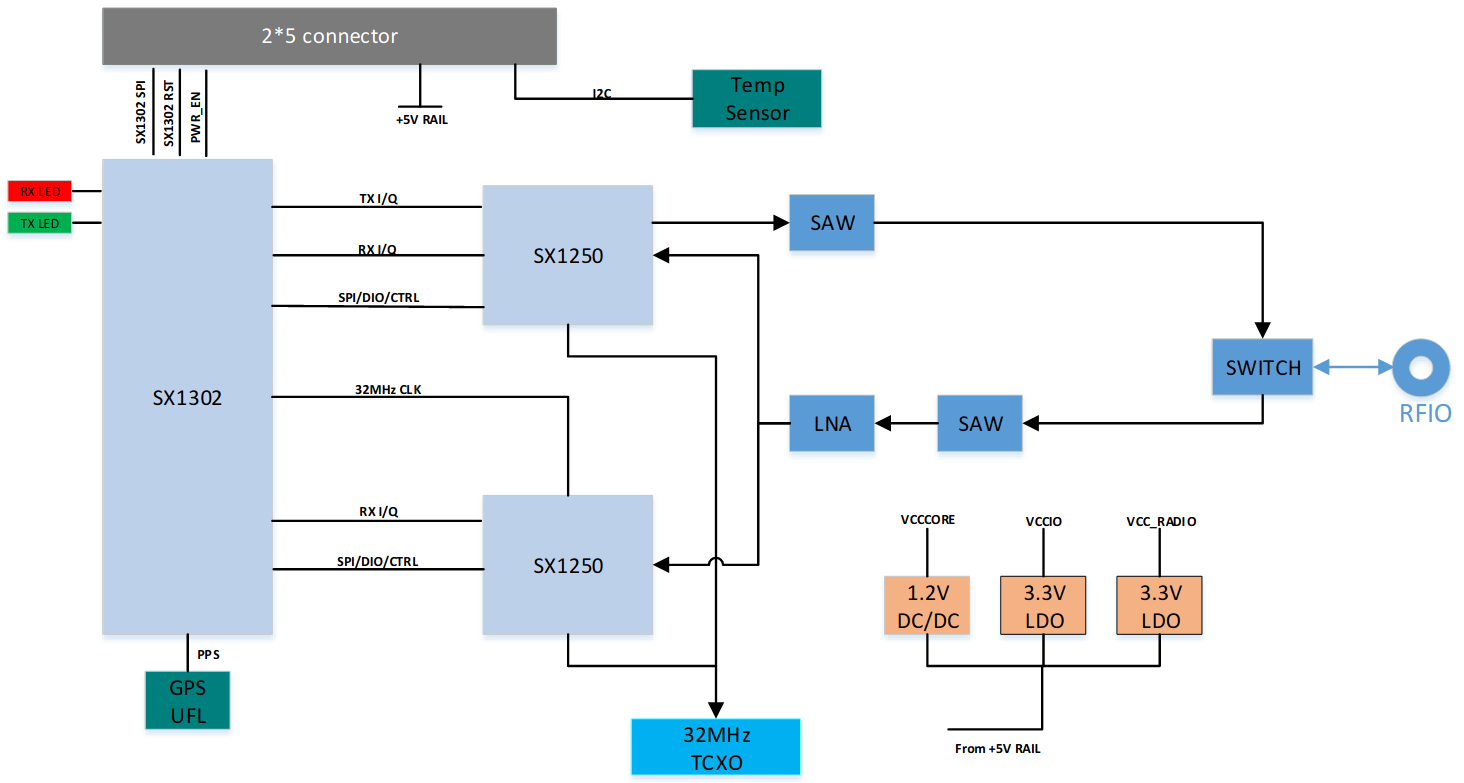

To go along with Semtech’s Corecell reference design, they also provide the source for an packet forwarder application they call LoRa Basics Station. This software contains the code to drive the SX1308 and SX1257 chips on the Pygate board, and read timing and location information from a standard NEMA GPS data stream and. This application connects a LoRa network server to forward packets between end devices and the LoRaWAN network.

Building the Basics Station software turned out to be fairly straight forward. In fact Semtech have already put in the hard work to get it building on Raspberry Pi, so it’s as simple as:

1
2
3

git clone https://github.com/lorabasics/basicstation.git basicstation
cd basicstation
make platform=rpi variant=std

We will get into configuring and running the software a bit later, as that turned out to be the tricky bit, and requires some understanding of the rest of the network servers.

While the Basic Station software was already set up to drive the whole SX1308/SX1257 chipset at runtime, it didn’t handle everything for me. Specifically, the Pygate board has four input pins that must be driven correctly by the Raspberry Pi before it will work:

• RFPWR_EN: Enable signal to voltage regulator for RF power rail. Needs to be driven high to power RF front-end.
• FEM_EN: Enable signal to RF front-end. Must be driven high before enable front end circuits.
• SX1308_RST: Active high reset for SX1308 chip. Can be driven high to reset SX1308 chip, must be low at runtime.
• SX1257_RST: Active high reset for both SX1257 chip. Can be driven high to reset the SX1257 chips, must be low during operation.

While these possibly could have been tied high and low respectively, I connected these signals to Raspberry Pi GPIO pins and used the following shell script to power up the Pygate board and bring the chips out of reset:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

#!/bin/sh

sx1308_rst=22
sx1257_rst=27
fem_en=17
rfpwr_en=4

# Export IOs
echo "$sx1308_rst" > /sys/class/gpio/export; sleep 0.1;
echo "$sx1257_rst" > /sys/class/gpio/export; sleep 0.1;
echo "$fem_en"     > /sys/class/gpio/export; sleep 0.1;
echo "$rfpwr_en"   > /sys/class/gpio/export; sleep 0.1;

# Make IOs outputs
echo "out" > /sys/class/gpio/gpio$sx1308_rst/direction; sleep 0.1;
echo "out" > /sys/class/gpio/gpio$sx1257_rst/direction; sleep 0.1;
echo "out" > /sys/class/gpio/gpio$rfpwr_en/direction;   sleep 0.1;
echo "out" > /sys/class/gpio/gpio$fem_en/direction;     sleep 0.1;

# Enable power rails and assert resets
echo "1" > /sys/class/gpio/gpio$sx1308_rst/value; sleep 0.1;
echo "1" > /sys/class/gpio/gpio$sx1257_rst/value; sleep 0.1;
echo "1" > /sys/class/gpio/gpio$rfpwr_en/value;   sleep 0.1;
echo "1" > /sys/class/gpio/gpio$fem_en/value;     sleep 0.1;

# Deassert resets
echo "0" > /sys/class/gpio/gpio$sx1308_rst/value; sleep 0.1;
echo "0" > /sys/class/gpio/gpio$sx1257_rst/value; sleep 0.1;

One advantage of driving these enables/resets from GPIOs is that I can also reset or power down the whole LoRa chipset remotely using another shell script:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

#!/bin/sh

sx1308_rst=22
sx1257_rst=27
fem_en=17
rfpwr_en=4

# Assert resets
echo "1" > /sys/class/gpio/gpio$sx1308_rst/value; sleep 0.1;
echo "1" > /sys/class/gpio/gpio$sx1257_rst/value; sleep 0.1;

# Disable power rails
echo "0" > /sys/class/gpio/gpio$fem_en/value;     sleep 0.1;
echo "0" > /sys/class/gpio/gpio$rfpwr_en/value;   sleep 0.1;

Servers

With the network hardware figured out, I just just needed the core LoRaWAN servers and an application back-end to send data to. For the LoRaWAN core servers ended up choosing to use ChirpStack. It provides an integrated solution for the full LoRaWAN network core that is simple to self-host, has many back-end integrations out of the box, and is open source. For my back-end application I’m starting with logging messages to a PostgreSQL database for plotting with Grafana.

All the details of the ChirpStack architecture, can be found in their architecture documentation. Depending on the size of the network, and applications being run over it, ChirpStack can be deployed in different ways, but for my initial setup, this is what I architecture ended up landing on:

You will note that compared to my previous version of this post, there are two fewer server processes. In ChirpStack v4, the network server and application server functionality were merged into a single process. Additionally, I am no longer using InfluxDB, partially this is because I have since learned that PostgreSQL is likely more than capable of handling the amount of time-series I would be generating ,data without the complexity of a separate database. But additionally the latest version of InfluxDB can no longer be self-hosted, so not appropriate for a standalone network.

ChirpStack On the Gateway

To connect the Semtech Basic Station packet forwarder into the ChirpStack infrastructure we need to use the ChirpStack Gateway Bridge. This acts as a shim between the Semtech LNS protocol used by the Basic Station packet forwarder and the MQTT protocol and API used by ChirpStack². We have the choice of running the Gateway Bridge either on the Raspberry Pi gateway or on the server with the ChirpStack Network Server, I chose to run it on the Raspberry Pi so that all the external network communication would be happening within the domain of ChirpStack protocols.

Unlike the other ChirpStack components I ended up needing to build the gateway bridge from source, this was because my Raspberry Pi board was old enough that the CPU was not supported by the pre-built ARM binaries. Fortunately this is not too difficult, I just needed to install the Go compiler and run make:

1
2
3
4

apt-get intall golang-go
git clone https://github.com/chirpstack/chirpstack-gateway-bridge chirpstack-gateway-bridge
cd chirpstack-gateway-bridge
make build

ChirpStack in Docker Compose

The rest of the chirpstack components and my back-end database I am running on a standard x86 computer running linux as docker containers, managed with docker-compose. ChirpStack conveniently publishes an example docker-compose configuration on this GitHub page: chirpstack/chirpstack-docker. This gave me a good starting place but the configuration did not match the server setup I was looking for, and did not include the Grafana for plotting received data. My final docker-compose and other configurations can be found in the prbs23/chirpstack-docker-prbs23 GitLab repository.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

services:
  chirpstack:
    image: chirpstack/chirpstack:4
    command: -c /etc/chirpstack
    restart: unless-stopped
    volumes:
      - ./configuration/chirpstack:/etc/chirpstack
      - ./lorawan-devices:/opt/lorawan-devices
    depends_on:
      - postgres
      - mosquitto
      - redis
    environment:
      - MQTT_BROKER_HOST=mosquitto
      - REDIS_HOST=redis
      - POSTGRESQL_HOST=postgres
    ports:
      - 7070:7070

  postgres:
    image: postgres:14-alpine
    restart: unless-stopped
    volumes:
      - ./configuration/postgresql/initdb:/docker-entrypoint-initdb.d
      - postgresqldata:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=ruwkUXDzkGYr8Y

  redis:
    image: redis:7-alpine
    restart: unless-stopped
    command: redis-server --save 300 1 --save 60 100 --appendonly no
    volumes:
      - redisdata:/data

  mosquitto:
    image: eclipse-mosquitto:2
    restart: unless-stopped
    ports:
      - 7071:7071
    volumes:
      - ./configuration/mosquitto/config/:/mosquitto/config/

  grafana:
    image: grafana/grafana-oss:latest
    ports:
      - '7072:3000'
    volumes:
      - grafana-storage:/var/lib/grafana
      - ./configuration/grafana/provisioning:/etc/grafana/provisioning
      - ./configuration/grafana/dashboards:/etc/dashboards
    depends_on:
      - postgres
    environment:
      - GF_SECURITY_ADMIN_USER=admin
      - GF_SECURITY_ADMIN_PASSWORD=A37NJSGmLVLCue

volumes:
  postgresqldata:
  redisdata:
  grafana-storage:

There are a couple main things that I customized from ChirpStack’s default docker-compose file:

• Removed the ChirpStack Gateway Bridge container, because I am running the gateway bridge on my gateway device itself.
• Removed the ChirpStack REST API server, as this is only neccesary for integrating with application software built for ChirpStack v3.
• Changed the external facing ports. I have other applications running on this server that already used the default ports.

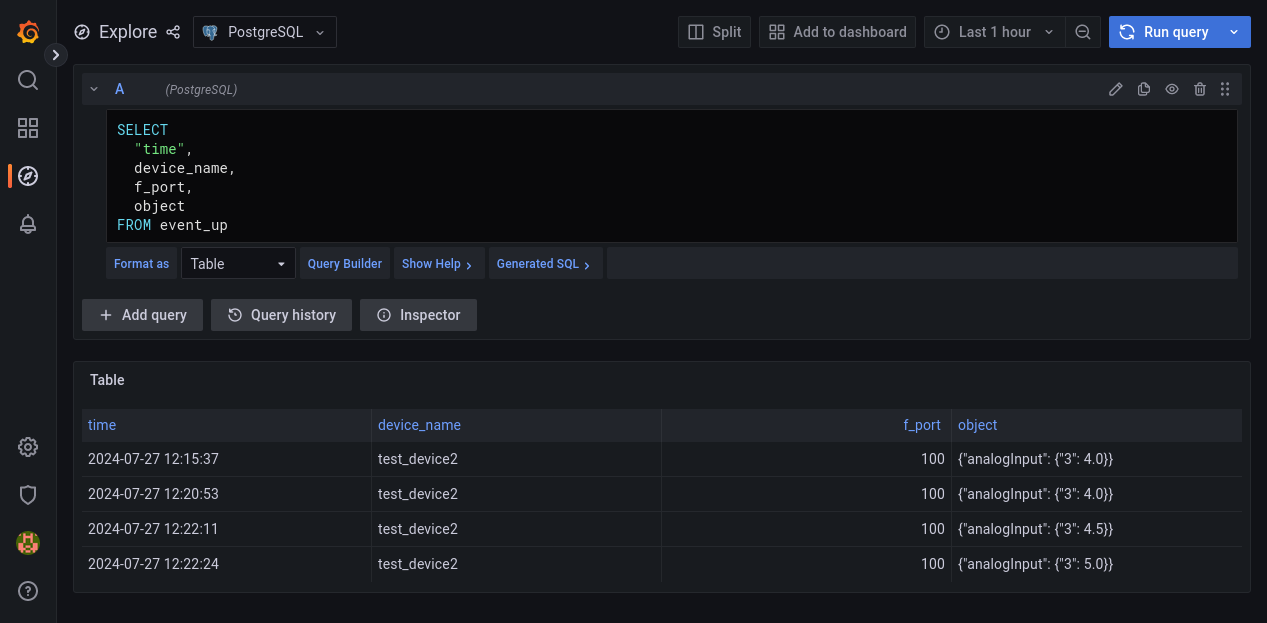

• Configured PostgreSQL integration to log decoded payload received from end device sensors.

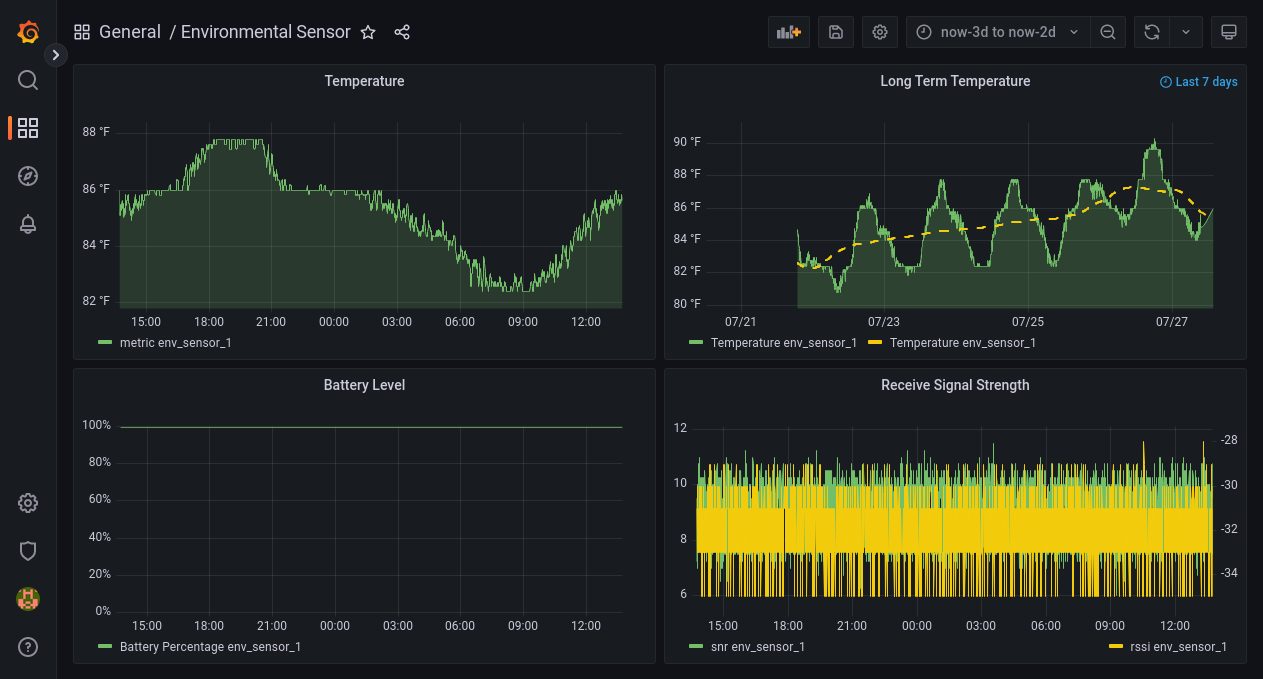

• Added Grafana container to the configuration. Because my first application for this network will be data logging, Grafana can be used to plot data stored in the ChirpStack PostgreSQL integration database.

Configuring the Network

Now that I have all the hardware and software pieces I need for a private LoRaWAN network, I just needed to configure them to work together. This turned out to be more complicated than I expected, and also poorly documented, so I’ll walk through the important configurations for each component in the system.

Note: The following configuration is set up as a test network. There are multiple authentication and security features available in ChirpStack which I have not configured for this application, but you should be using for a real network.

ChirpStack Network Server

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

# Logging.
[logging]
  # Options are: trace, debug, info, warn error.
  level="info"

# PostgreSQL configuration.
[postgresql]
  # PostgreSQL DSN.
  dsn="postgres://chirpstack:<POSTGRESQL_CHIRPSTACK_PASSWORD>@$POSTGRESQL_HOST/chirpstack?sslmode=disable"

  # Connection Options
  max_open_connections=10
  min_idle_connections=0

# Redis configuration.
[redis]
  # Server address or addresses.
  servers=["redis://$REDIS_HOST/"]

  # TLS enabled.
  tls_enabled=false

  # Redis Cluster.
  cluster=false

# Network related configuration.
[network]
  # Network identifier (NetID, 3 bytes) encoded as HEX (e.g. 010203).
  net_id="000000"

  # Enabled regions.
  enabled_regions=["us915_0",]

# API interface configuration.
[api]
  # interface:port to bind the API interface to.
  bind="0.0.0.0:7070"

  # API Secret. (Generate with openssl rand -base64 32)
  secret="<API_SECRET>"

[integration]
  enabled=["mqtt", "postgresql"]

  [integration.mqtt]
    server="tcp://$MQTT_BROKER_HOST:7071/"
    json=true

  [integration.postgresql]
    dsn="postgres://chirpstack_integration:<POSTGRES_CHIRPSTACK_INTEGRATION_PASSWORD>@$POSTGRESQL_HOST/chirpstack_integration?sslmode=disable"

In ChirpStack v4, the functionality of the v3 Application Server (API, and web UI) were merged into the ChirpStack network server. This does simplify the configuration some, in that there is now a single ChirpStack configuration file configuration/chirpstack/chirpstack.toml. The file now contains all the ChirpStack server configuration parameters, including LoRaWAN network settings and regions, authentication secrets, and application integration options. There are however two main LoRaWAN setting to call out.

• net_id: Specifies the LoRaWAN network ID for the network server. The network ID is used to uniquely identify LoRaWAN networks when routing between network servers when supporting network roaming. If you wanted to support connecting end devices through other device’s gateways, then it is necessary to acquire a unique network ID from the LoRa Alliance. However, network IDs 0x000000 and 0x000001 are reserved for experimental networks (I consider this experimental), and networks that are not using roaming (which I am not), so this can just be set to 0x000000.
• enabled_regions: Defines which LoRaWAN regions and channel plan configurations will be supported by the network server. In ChirpStack v4, the network server now simultaneously supports multiple channel plan configurations, each entry in the enabled_regions configuration list corresponds to a configuration file named region_<region>.toml in the configuration/chirpstack directory. The chirpstack/chirpstack-docker repository comes with a large set of standard channel plans for all regions. I chose the “us915_0” configuration for my network, since it is in the US, and matches the channel plan I used when setting up ChirpStack v3. More details on channel plans below.

In addition to the LoRaWAN network settings, the remainder of the settings that needed to be configured were the connection parameters to the other docker containers in the system.

Gateway Bridge

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

[integration.mqtt.auth.generic]
servers=["tcp://<NETWORK_SERVER_HOST>:7071"]

[integration.mqtt]
event_topic_template="us915_0/gateway/{{ .GatewayID }}/event/{{ .EventType }}"
state_topic_template="us915_0/gateway/{{ .GatewayID }}/state/{{ .StateType }}"
command_topic_template="us915_0/gateway/{{ .GatewayID }}/command/#"

[backend]
type="basic_station"

  [backend.basic_station]
  bind=":3001"

  region="US915"
  frequency_min=923000000
  frequency_max=938000000


  [[backend.basic_station.concentrators]]

    [backend.basic_station.concentrators.multi_sf]
    frequencies=[
      902300000,
      902500000,
      902700000,
      902900000,
      903100000,
      903300000,
      903500000,
      903700000,
    ]

    [backend.basic_station.concentrators.lora_std]
    frequency=903000000
    bandwidth=500000
    spreading_factor=8

Other than the MQTT broker host and port, the primary purpose of this configuration is to set up the channel plan that this gateway will use. This needs to match with one of the enabled_regions configurations listed in the network server configuration above. To understand how to configure the LoRaWAN channel plan should be configured we need to understand two things:

First, we need to know how the regional parameters specification defines the LoRaWAN channels for our region. In my case the US915 LoRaWAN Regional Parameters specification defines 72 uplink channels. The first 64 channels are defined as 125khz wide channels spaced every 200khz starting 902.3Mhz. The remaining 8 channels are 500khz wide spaced every 1.6Mhz starting at 902.3Mhz

The second thing to understand what is supported by the SX1308 radio baseband chip. The SX1308 has 10 independent receive demodulation data paths that operate in parallel. Channels 0-7 are fixed 125khz LoRa demodulators with independently controlled frequencies, which can demodulate all LoRa spreading factors simultaneously. Channel 8 has a configurable LoRa demodulator that supports 125khz, 250khz, and 500khz channel bandwidth and a configurable frequency and spreading factor, but can only demodulate a single data rate at a time. Finally channel 9 is a (G)FSK demodulator that is used to support the LR-FHSS channels, which use frequency hopping spread spectrum modulation instead of the LoRa chirp spread spectrum modulation used by the other channels.

Given this, these are the important settings from the gateway configuration:

• region, frequency_min, frequency_max: These simply define what LoRa region that the gateway is operating in, which for me is the US915 band, which operates between 902Mhz and 928Mhz.
• backend.basic_station.concentrators.multi_sf: This specifies the channel frequencies for the first eight channels of the SX1308. Note that since the regional specification defies more 125Mhz channels than the SX1308 has, we have to pick a subset of the defined channels. I am simply using the first 8 128Khz LoRaWAN channels.
• backend.basic_station.concentrators.lora_std: The frequency, bandwidth, and spreading_factor values in this group configure demodulation channel 8 in the SX1308. Since we already have 8 125Khz channels configured, I am using this channel for one of the 500khz channels, specifically LoRaWAN channel 64.
• integration.mqtt.*_topic_template: In the ChirpStack v4 architecture, the MQTT topics the gateway bridge uses to communicate with the network server need to be prefixed with the channel plan name used by the network server. In this case this is “us915_0”, as that is the name of the region/channel plan configuration we used in chirpstack.toml.

Gateway Packet Forwarder

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

{
    "SX1301_conf": {                  /* Actual channel plan is controlled by server (ChirpStack Gateway Bridge) */
        "device": "/dev/spidev0.0",   /* Default SPI device */
        "lorawan_public": false,      /* Use private sync header, must be coordinated with all devices ahead of time */
        "clksrc": 1,                  /* radio_1 provides clock to concentrator */
        "radio_0": {
            "type": "SX1257",
            "rssi_offset": -166.0,
            "tx_enable": true,        /* First SX1257 device is used for transmitter */
            "antenna_gain": 0
        },
        "radio_1": {
            "type": "SX1257",
            "rssi_offset": -166.0,
            "tx_enable": false        /* Second SX1257 is not connected to transmit path */
        },
        "pps": false                  /* My GPS doesn't have a pps output, so don't expect it */
    },
    "station_conf": {
        "log_file":  "stderr",
        "log_level": "DEBUG",  /* XDEBUG,DEBUG,VERBOSE,INFO,NOTICE,WARNING,ERROR,CRITICAL */
        "log_size":  10000000,
        "log_rotate":  3,
        "CUPS_RESYNC_INTV": "1s",
        "gps": "/dev/serial0",        /* GPS Connected to serial0 device */
        "pps": "gps"
    }
}

Finally the configuration for the Basic Station packet forwarder application just needs to be configured based on the hardware setup of our gateway. The important settings here are:

• lorawan_public: Setting this option to false which changes the LoRa sync header byte from the specification’s 0x34 to 0x12. Since the sync header is used to identify the start of a packet, changing the sync header prevents packets on our private network from interfering with any public LoRaWAN network.
• clksrc: This indicates which of the two SX1257 radio front-ends generates the 32Mhz radio clock for the SX1308. On the Pygate module this is the second SX1257.
• radio0/radio1: These groups configure the two SX1257 front-ends connected to the SX1308. The main difference between them is that on the Pygate module, the “radio0” transmit path is hooked up, and it is not for “radio1”.
• pps: Since my GPS module does not have a PPS output that I can connect to that SX1308 chip this gets set to false.

Configuring an Application Through the ChirpStack UI

Once these configurations are set up we can start the servers, but before we can start sending packets we need to configure an application that we can associate with our gateway and devices. This is done through the ChirpStack network server’s web interface.

Fortunately this is another area where ChirpStack v4 has made things simpler. Previously it was necessary to configure an “Network Server”, “Organization”, “Network”, and “Service Srofile” before setting up an application. None of that is required anymore: Version 4 comes with a default “Tenant” (somewhat equivalent to an organization in v3), and since the network and application servers have been merged, there’s not a need to define the network server connection or configure a network through the UI anymore. This means we can jump right into configuring the application.

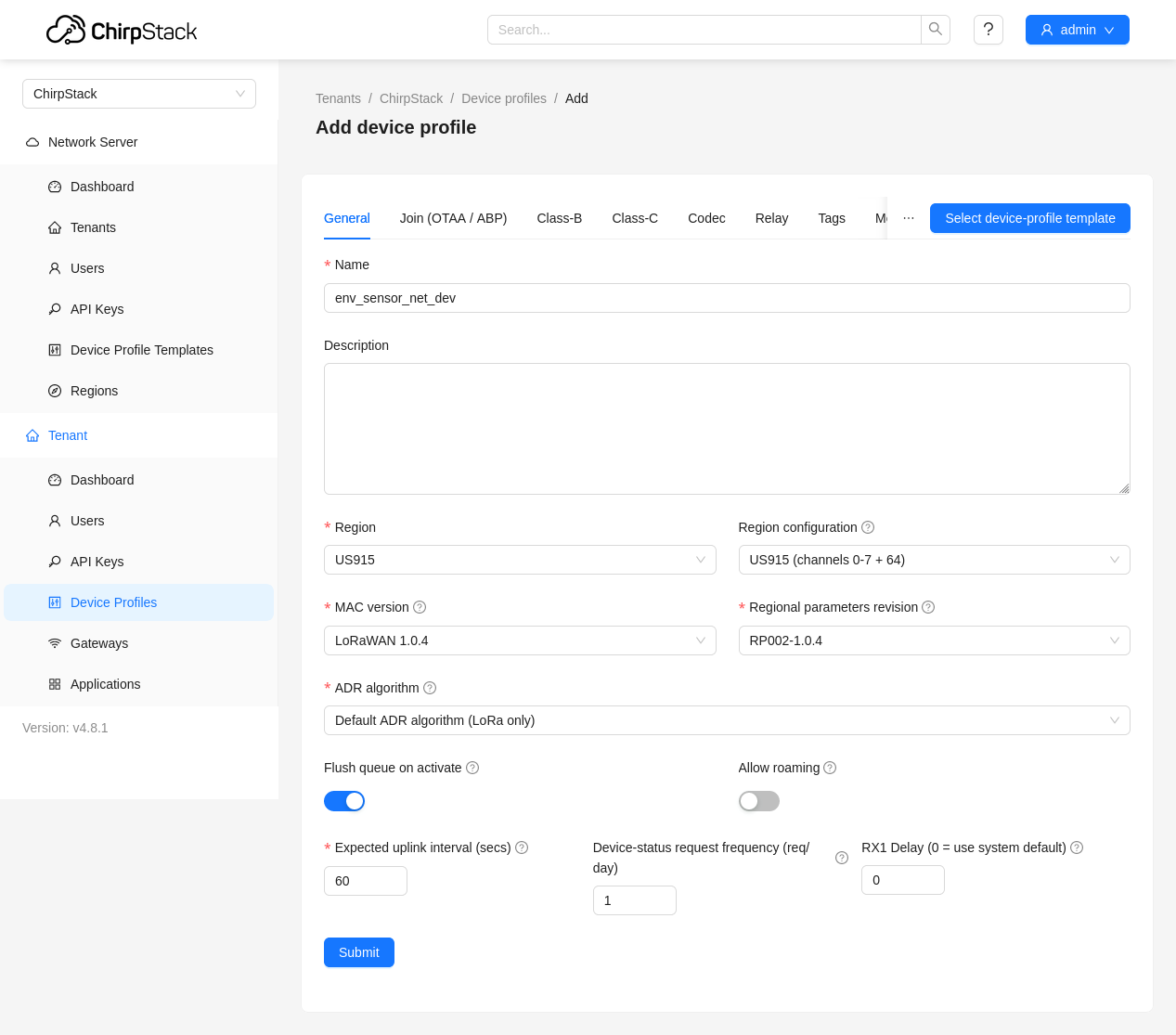

The first thing to set up is a device profile by selecting the “Device Profiles” section on the sidebar, and clicking “Add device profile”. This configures common network parameters used by one or more types of devices connected to our application. The important settings to configure are:

• General→Region and Region Configuration: Set US915 and US915 (channels 0-7 + 64), these will be the only options available, because these are the only channel plans we configured for the network server.
• General→MAC version: I am using LoRaWAN 1.0.4 because it the demo firmware I am using does not support the latest LoRaWAN 1.1.0 version.
• General→Regional parameters revision: Version RP002-1.0.4 is the latest specification, and is supported by my demo firmware.
• General→ADR algorithm: Make sure that the LoRa only option is selected, as the gateway is not configured for LR-FHSS.

To simply logging data into the PostgreSQL integration database, I chose to enable “Cayenne LPP” codec under the “Codec” tab of the device-profile settings. When enabled, the ChirpStack application server will assume uplink packets from devices with this profile are encoded with the Cayenne LPP format, and automatically decoded them. This makes it simple encode basic binary values on the end-device and have them logged into the database in a meaningful way.

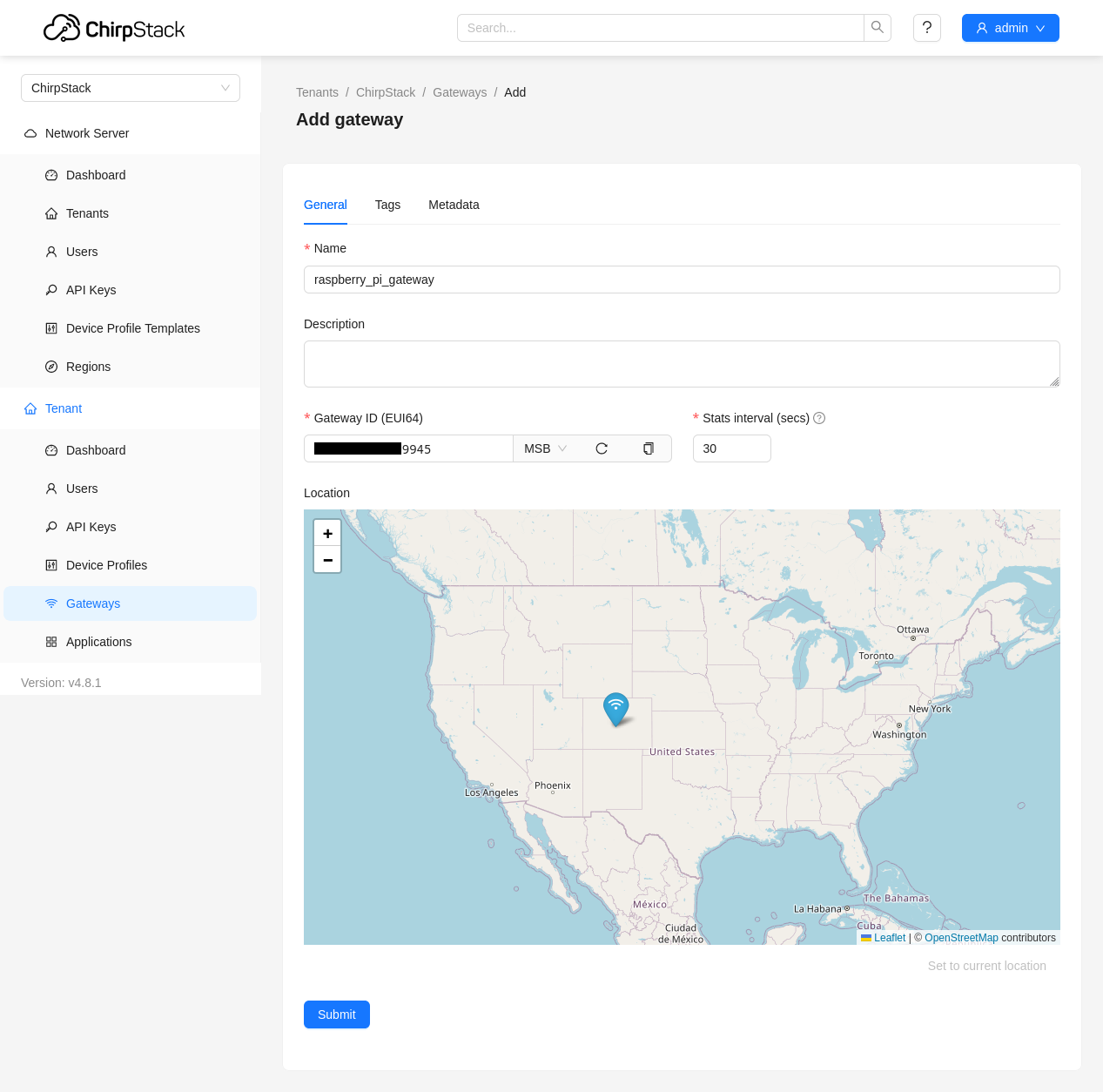

The next step is to connect our gateway to the network server. To do this, under “Gateways” we create a new gateway with a name, gateway ID. The gateway ID is defined by the Basic Station packet forwarder application and by default is set to the MAC address of the primary network interface on the gateway. The network server and service profiles should be configured to the ones we have just created.

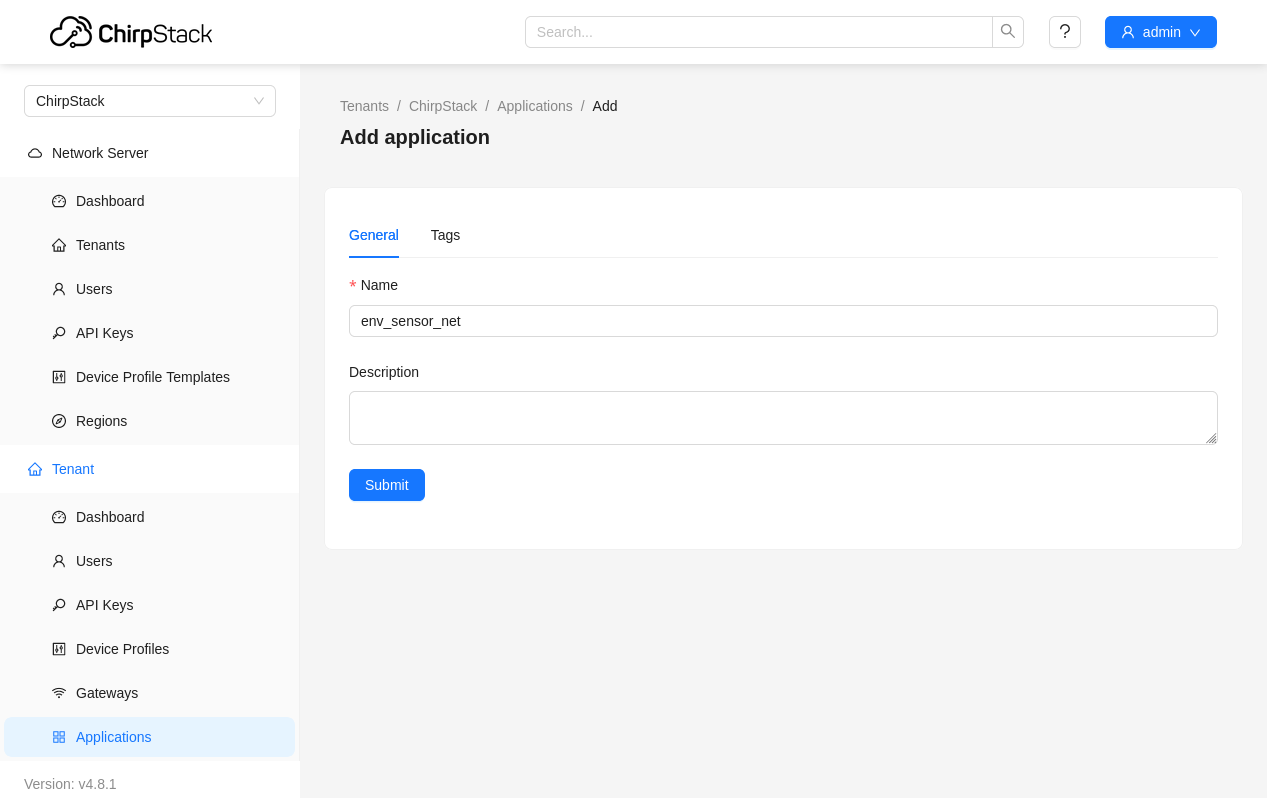

Now we can up the application that runs on top of our LoRaWAN network. To do this we just create a new application with a name and a description. Since the PostgreSQL integration has been configured in chirpstack.toml we don’t need to set up the additional integration settings for decoded data from received packets into the database.

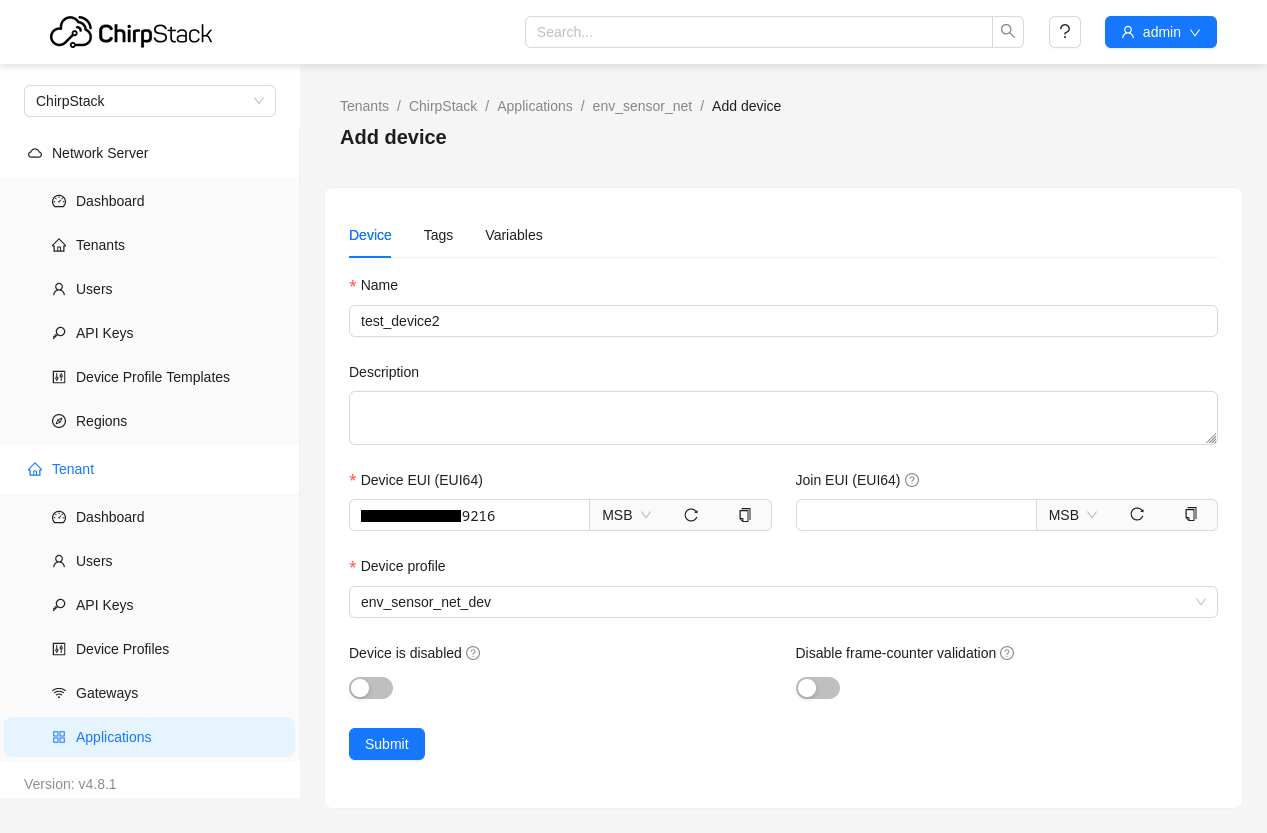

Finally we can add a our end-device to the application under the “Devices” tab, by selecting create and entering a device name, device EUI, and the previously created device profile. The Device EUI is a globally unique IEEE EUI64 identifier for the end-device, the CMWX1ZZABZ transceiver module comes pre-programmed with a Device EUI which will be used by firmware when sending join requests.

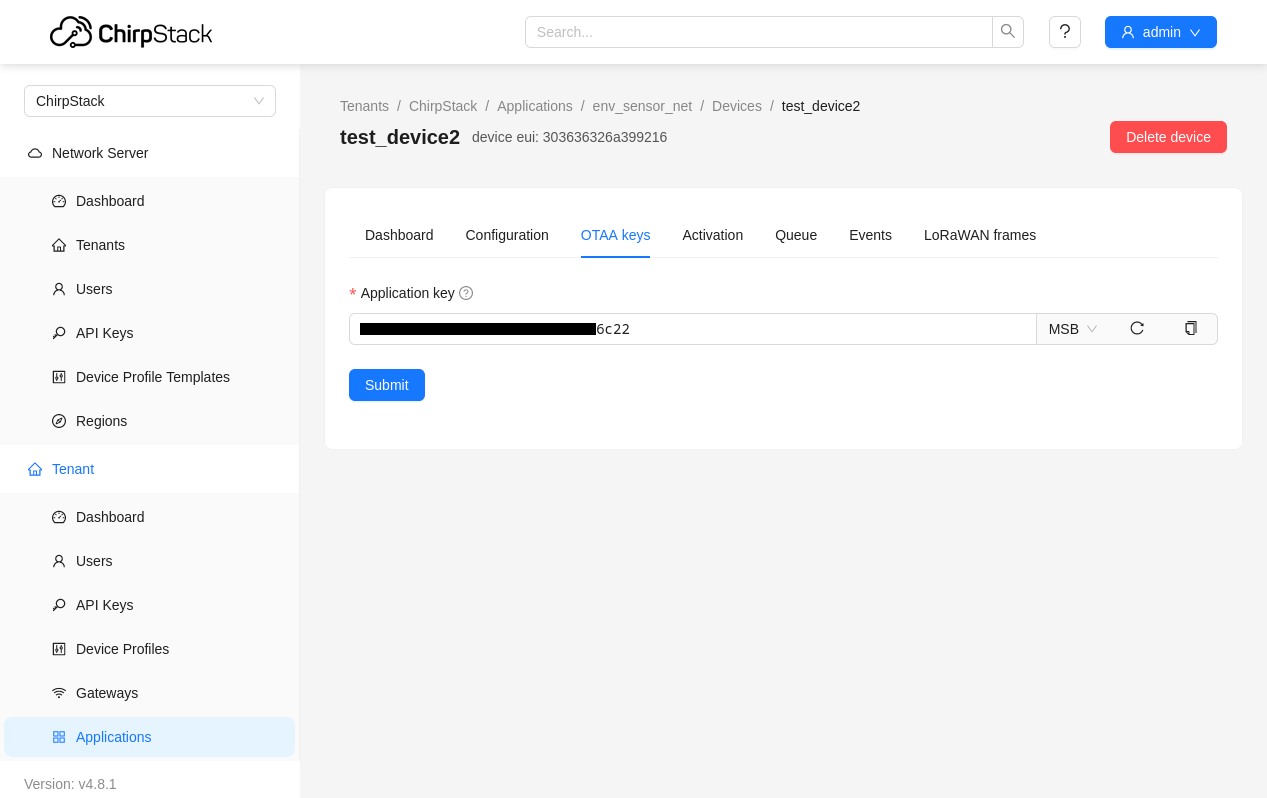

Once the device has been created ChirpStack brings us to a page to enter or create an “Application Key”. This is a shared 128-bit key used by the end-device and network to derive encryption keys for all data sent across the network. It should be set to something random, and communicated to the end-device out of band.

And that’s it! Our network and applications are set up and ready to go!

Sending a Packet

As previously mentioned, to test out the network I am running an example application which turns the CMWX1ZZABZ module into an AT style modem. I’m connecting to the modem firmware over the USB-Serial interface provided by the ST-Discovery development board I’m using.

When the module comes out of reset we get the following output:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

APP_VERSION:        V1.1.0
MW_LORAWAN_VERSION: V2.3.0
MW_RADIO_VERSION:   V1.1.0
###### OTAA ######
###### AppKey:      2B:7E:15:16:28:AE:D2:A6:AB:F7:15:88:09:CF:4F:3C
###### NwkKey:      2B:7E:15:16:28:AE:D2:A6:AB:F7:15:88:09:CF:4F:3C
###### ABP  ######
###### AppSKey:     2B:7E:15:16:28:AE:D2:A6:AB:F7:15:88:09:CF:4F:3C
###### NwkSKey:     2B:7E:15:16:28:AE:D2:A6:AB:F7:15:88:09:CF:4F:3C
###### DevEui:  XX:XX:XX:XX:XX:XX:XX:XX
###### AppEui:  01:01:01:01:01:01:01:01
###### DevAddr: XX:XX:XX:XX
ATtention command interface
AT? to list all available functions

From here we can send the commands to have our end-device join the network. First we need to set the NwkKey to the “Application Key” we configured in the ChirpStack UI previously, then send the join command:

1
2

AT+NWKKEY=XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX
AT+JOIN=1

When everything works correctly I get an output like the following, indicating that we have joined the network.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

OK

299s464:TX on freq 903100000 Hz at DR 0

OK
299s895:MAC txDone
304s884:RX_1 on freq 925700000 Hz at DR 10
305s018:MAC rxDone
+EVT:JOINED
+EVT:RX_1, DR 0, RSSI -80, SNR 8

To send a packet we use the AT+SEND command which takes three arguments: The LoRaWAN port, which can be anything other than 0 (port zero indicates network management packet), a 1 or 0 indicating if we want the network to confirm receipt of the packet, and finally the data to send as a hex string. Since I have configured ChirpStack to decode packets using the Cayenne LPP protocol, the message I’m sending is formatted using Cayenne LPP. The following command will send a packet with a value of 4.00 for the “Analog Input 3” value on port 100.

1

AT+SEND=100:1:03020190

In response the firmware gives us this output indicating that it sent our message and it was confirmed by the network:

1
2
3
4
5
6
7
8

685s981:TX on freq 902500000 Hz at DR 0

OK
686s333:MAC txDone
687s323:RX_1 on freq 923900000 Hz at DR 10
687s434:MAC rxDone
+EVT:SEND_CONFIRMED
+EVT:RX_1, DR 10, RSSI -75, SNR 8

After sending a few of these messages, we can check the event_up table in the PostgreSQL integration database through Grafana and see that each packet we sent was stored into the database, with the decoded payload in the jsonb type object column.

Success!

Next Steps

Now that I have a working LoRaWAN network, there are several areas that I will be investigating in the future.

To start with I have just been using the built in PostgreSQL integration and Cayenne LPP packet format built into ChirpStack to log basic data. Of course the LoRaWAN network supports sending any data with any protocol, so now that I can reliably send data there are a lot of options of both custom and built in protocols that can be layered on top of LoRaWAN and ChirpStack.

However as a proof of concept I modified the one of the other STM32 LoRaWAN examples to use the internal temperature sensor inside the STM32L0 to log data using Cayenne LPP (source code here prbs23/lorawan_env_sensor_fw. Then using a Grafana dashboard I was able to make a nice dashboard that shows historical temperatures.

This is really a proof of concept for a more custom built data collection network I am looking to build on top of LoRaWAN. I have already started building some custom firmware from scratch using the LoRaMAC library, but there is still much to be done in terms of defining protocols, device commissioning, and custom sensor support.

Finally, as previously mentioned I have not configured all the authentication and authorization features supported by ChirpStack. I need to spend some more time investigating and learning how to configure these to better secure my network.
